GYTXC8A Figure-8 Self-supporting Uni-tube Optical Cable

复制链接

脸书

推特

领英

GYTXC8A Optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound.The tube is surrounded.

Product No. BY-GYTXC8A

Types Fiber Optic cable

Secification Up to 24 Cores

Material HDPE

Chat Now

Send Inquiry

OverviewSpecification DataApplicationFile Download

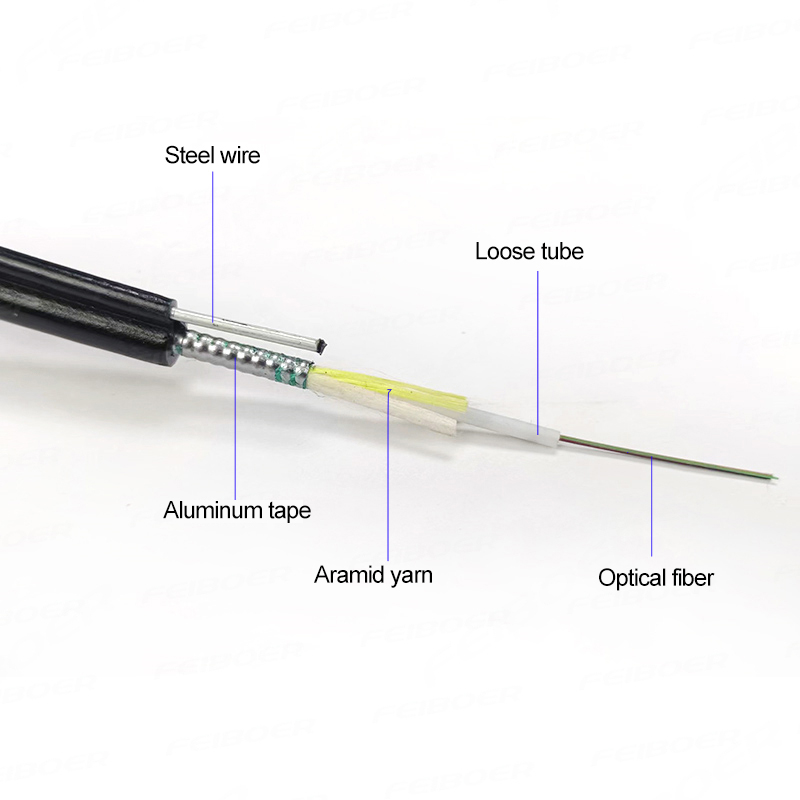

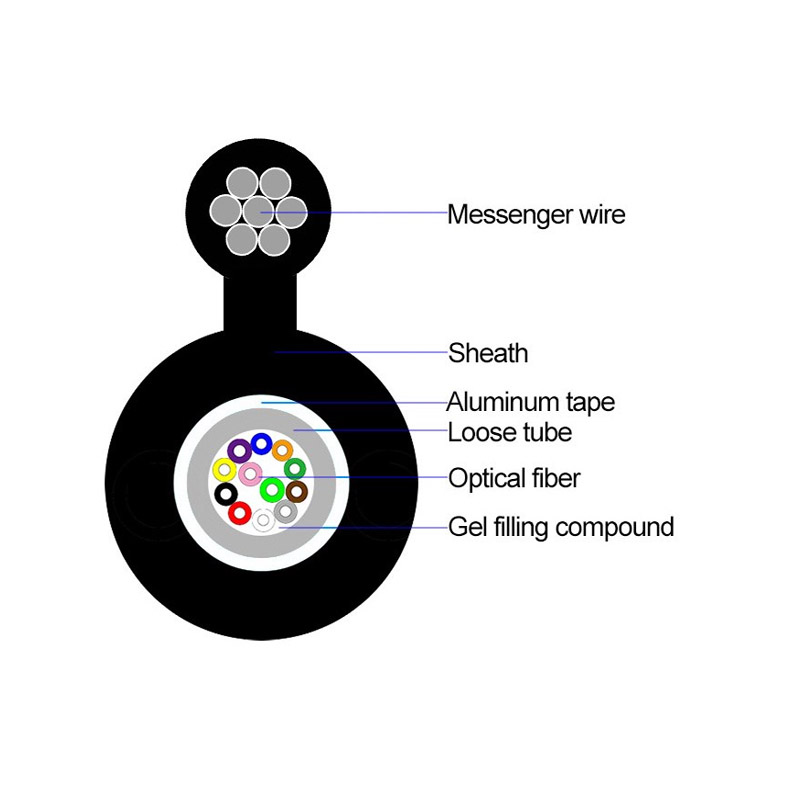

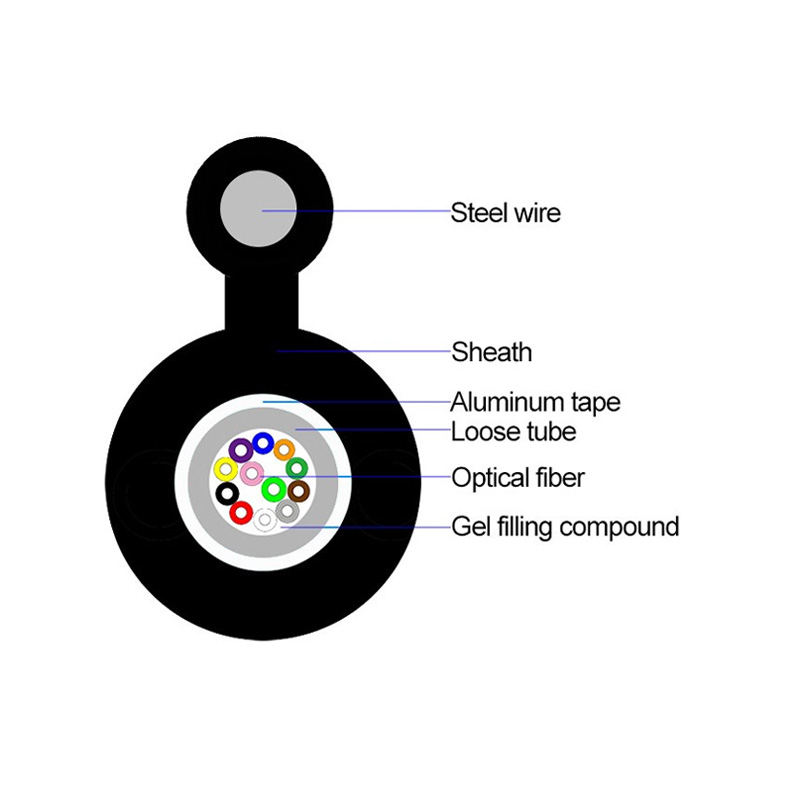

Optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound.The tube is surrounded.

Temperature Range

Operating :-40ºC to +70ºC

Storage :-50ºC to +70ºC

Features

Figure-8 design, easy for self-supporting aerial installation, reducing installation costs

Good mechanical and temperature performances Small size, light weight and soft, easy for installation

Applicable to short distance self-supporting aerial installation

Applications

In the distribution segment of optical networks in rural areas, the cable can be used as drop cables for the self-supporting aerial installation toconnect branching points with access points for subscribers.

fiber optic cable example fiber optic cable lc

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm
