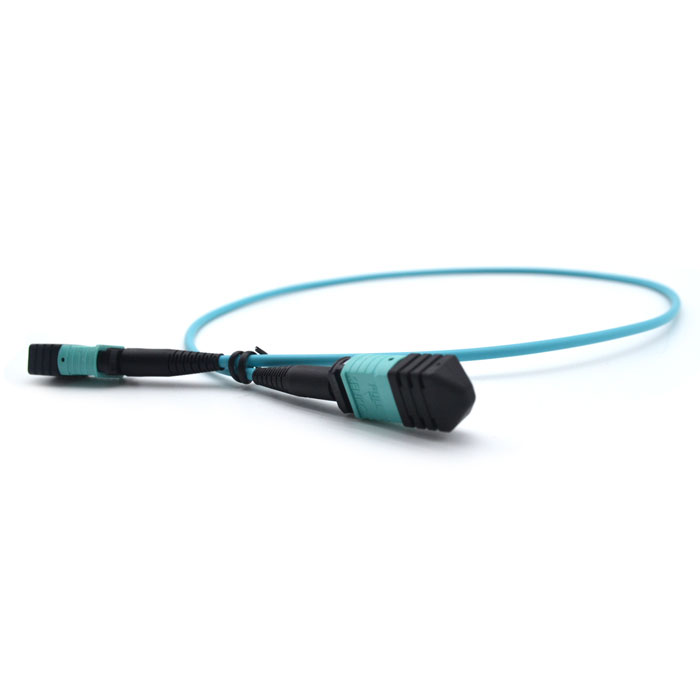

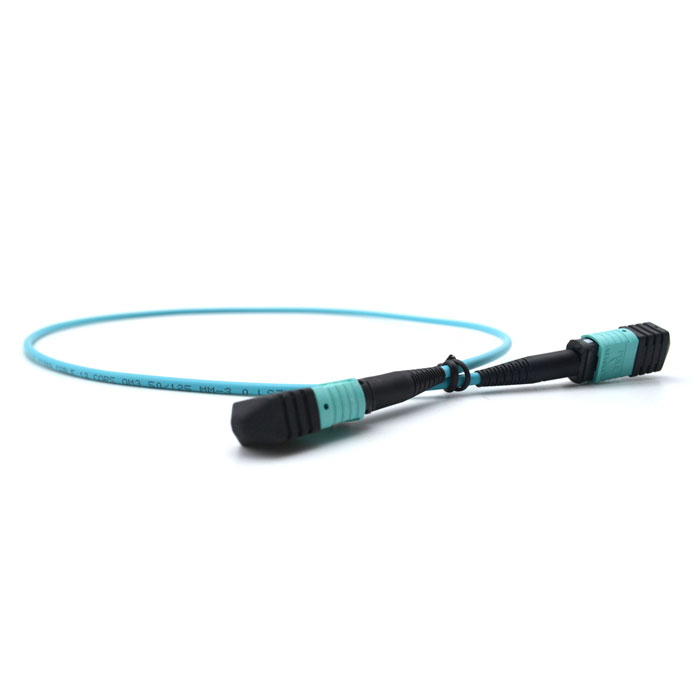

MPO/MPO-OM3-12F-3.0MM-LSZH-1M

复制链接

脸书

推特

领英

Chat Now

Send Inquiry

OverviewSpecification DataApplicationFile Download

PO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out.

Specification

Specification	MM low loss Mutimode MT ferrule	Standard Mutimode MT ferrule	SM low loss Singlemode MT ferrule	Standard Mutimode MT ferrule
Insertion Loss	Typitcal<0.30dB Maximum<0.5dB	Typitcal<0.50dB Maximum<0.7dB	Typitcal<0.30dB Maximum<0.7dB	Typitcal<0.50dB Maximum<0.7dB
Return Loss	≥20dB	≥20dB	≥PC45dB ≥APC30dB	≥PC45dB ≥APC30dB

Product features

-Push-pull latching

-Easy assembly , no tool needed

-Alignment achieved with high precious guide pins

-Designed for low loss and standard loss SM and MM applications

-Ruggedized round cable, oval cable and bare ribbon options available

-Color coded housing available to different fiber type, polish type and connector grade

Application

-Array trunk cables

-Array fiber to single fiber fanouts and cassettes

-High fiber density card edge access

-Optical switching interframe connections

-Datacenter Cabling

Production Tests

We carry out end face, insert loss & return loss and 3D test to ensure the product quality is up to standard.

Packge Method

Tie the line into the PE bag, the connector head position down, product labels affixed to the middle of the PE bag. The long side of the label is parallel to the bottom edge of the PE bag, finally put it into the carton.

Specification

Specification	MM low loss Mutimode MT ferrule	Standard Mutimode MT ferrule	SM low loss Singlemode MT ferrule	Standard Mutimode MT ferrule
Insertion Loss	Typitcal<0.30dB Maximum<0.5dB	Typitcal<0.50dB Maximum<0.7dB	Typitcal<0.30dB Maximum<0.7dB	Typitcal<0.50dB Maximum<0.7dB
Return Loss	≥20dB	≥20dB	≥PC45dB ≥APC30dB	≥PC45dB ≥APC30dB
