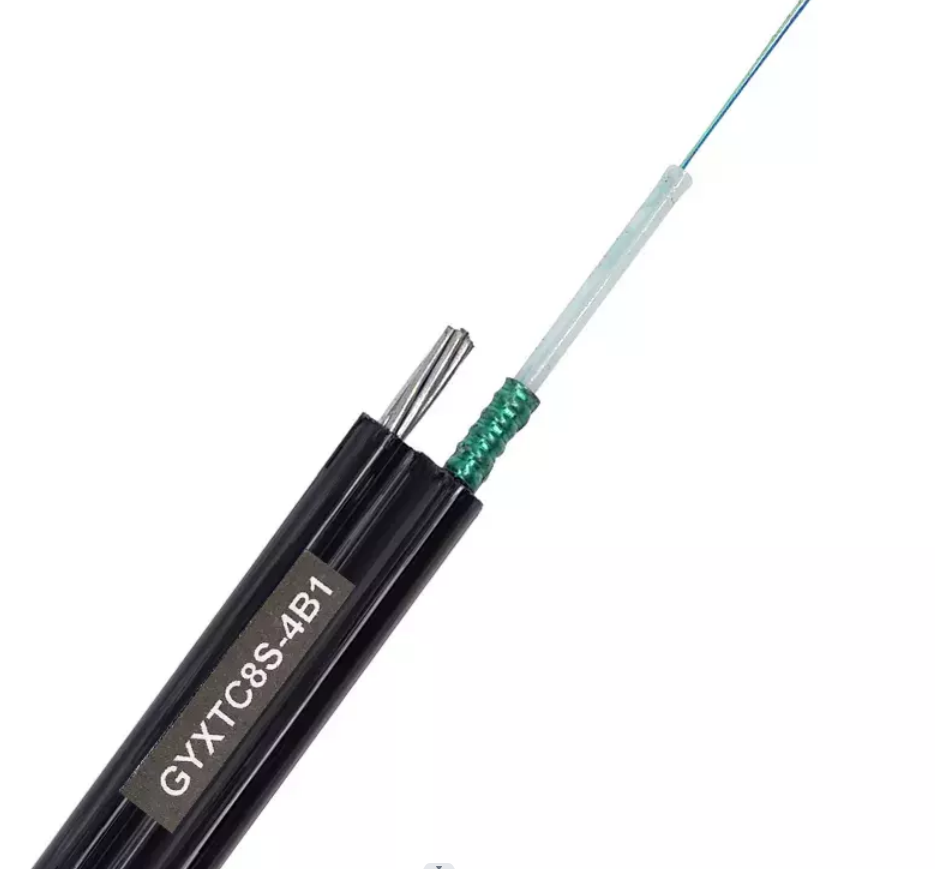

GYXTC8S Central Tube Figure-8 Fiber Cable

复制链接

脸书

领英

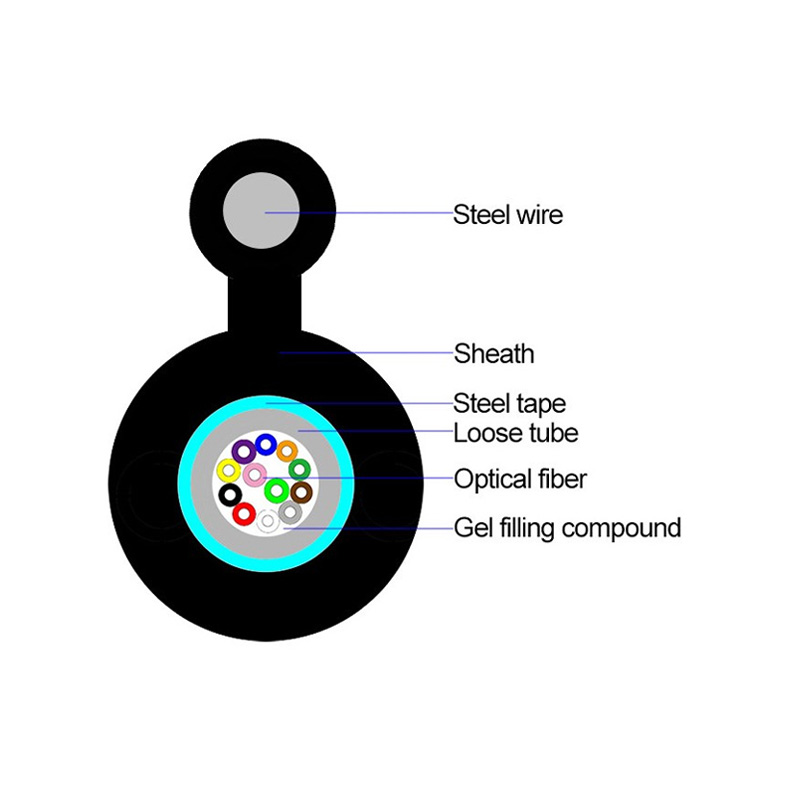

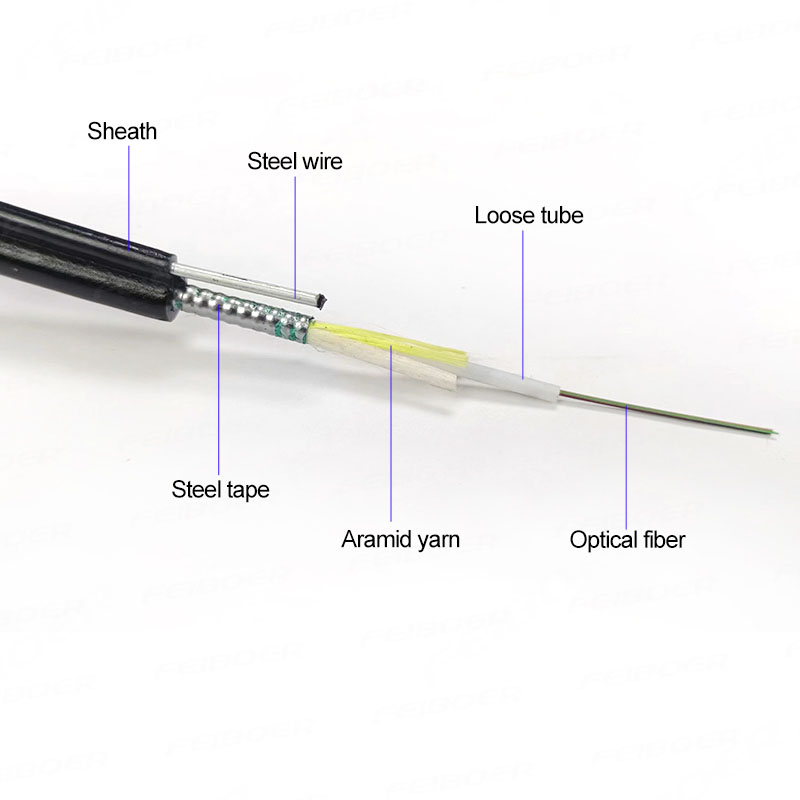

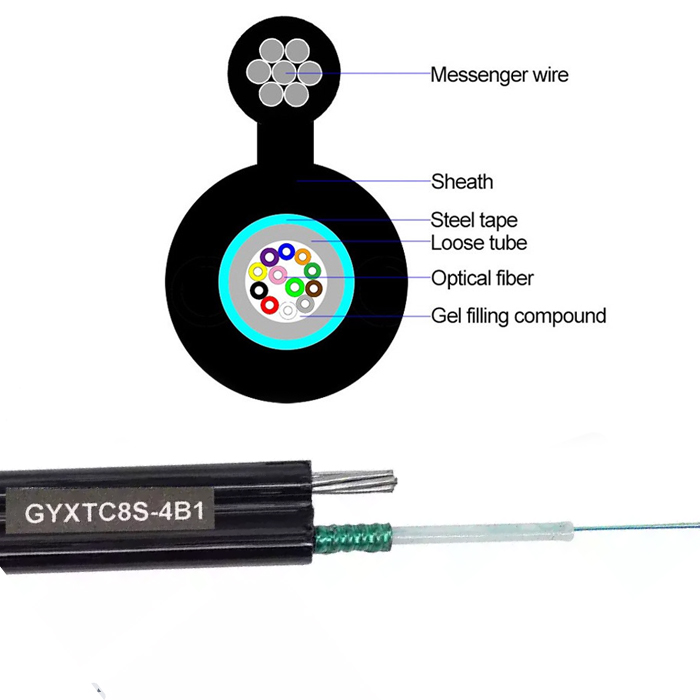

GYXTC8S cable,single-mode/multimode fibers are positioned in the loose tube, which is made of high modulus plastic materials and filled with filling compound

Product No. BY-GYTC8S

Types Fiber Optic cable

Secification Up to 24 Cores

Material HDPE

Chat Now

Send Inquiry

OverviewSpecification DataApplicationFile Download

Application: Self supporting Aerial

Characteristics：
1.Being used full section water retardant structure it possesses good water retardant and dampproof property.
2.Special factice is filled into inside of loosing jacket and takes key protection to optical fiber.
3.Vertical wrapped steel strip strengthens resisting lateral pressure ability
4.figure 8 self supporting type structure possesses high tensile strength and is convenient for aerial installation
and its installation cost is cheap.
5.The service life of the products will be more 30 years.

Temperature Range：
Storing temperature:-40℃ to +70℃
Operating temperature:-40℃ to +70℃

Standards：
Comply with stand YD/T 1155-2001 as well as IEC60794-1.

fiber optic cable example fiber optic cable lc

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm
