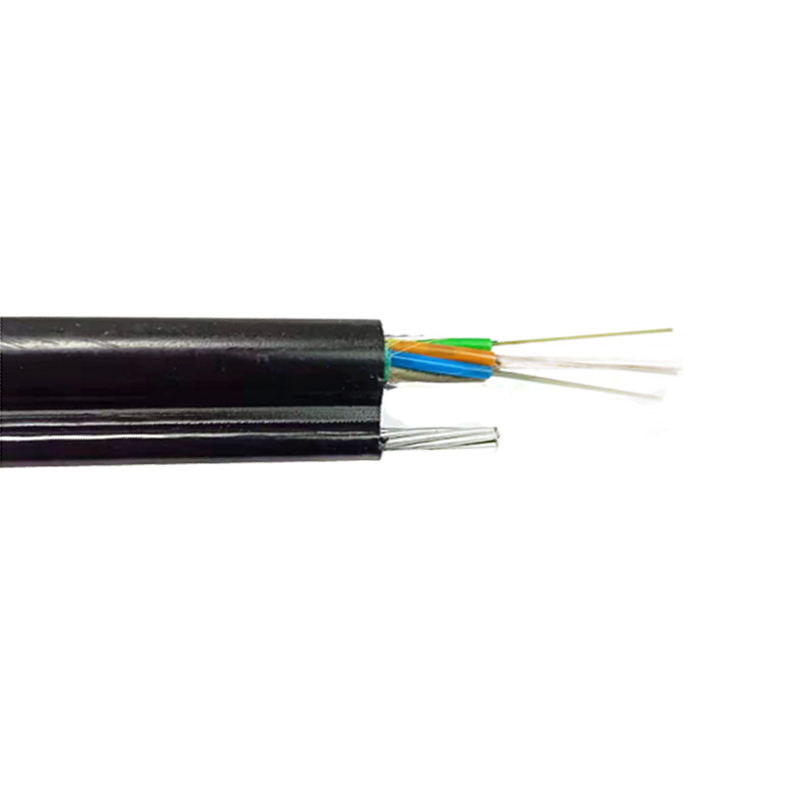

GYFTC8Y Aerial Fig8 Non-Armored Optical Fiber Cable

复制链接

脸书

领英

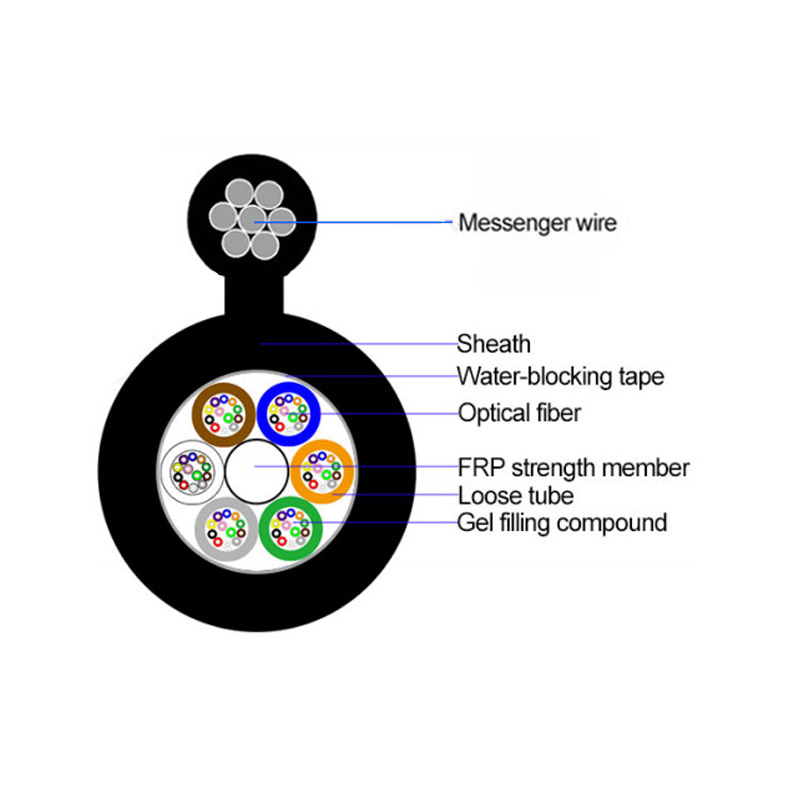

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material

Product No. BY-GYFTC8Y

Types Fiber Optic cable

Secification Up to 24 Cores

Material HDPE

Chat Now

Send Inquiry

OverviewSpecification DataApplicationFile Download

Optical fibres are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound.The tube is surrounded.

Temperature Range

Operating :-40ºC to +70ºC

Storage :-50ºC to +70ºC

Features

Figure-8 design, easy for self-supporting aerial installation, reducing installation costs

Good mechanical and temperature performances Small size, light weight and soft, easy for installation

Applicable to short distance self-supporting aerial installation

Applications

In the distribution segment of optical networks in rural areas, the cable can be used as drop cables for the self-supporting aerial installation toconnect branching points with access points for subscribers.
