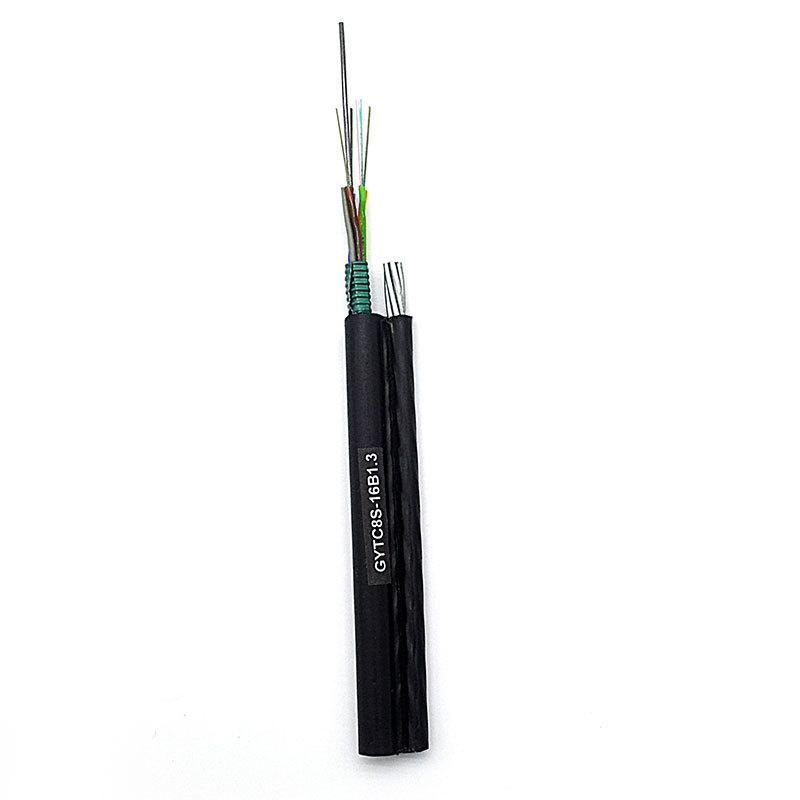

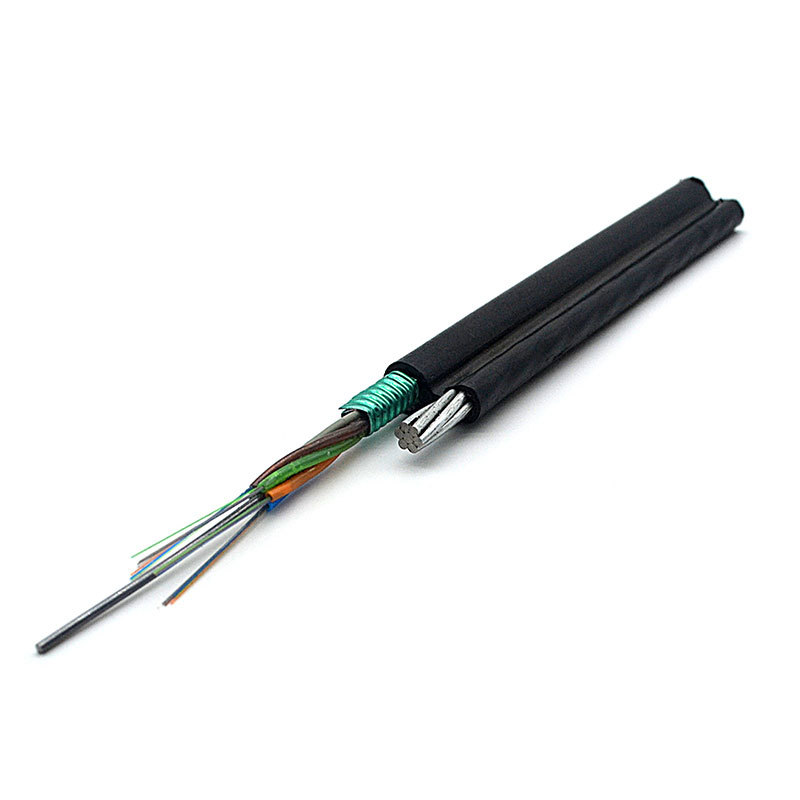

GYTC8S Outdoor Figure 8 Fiber Optic Cable

复制链接

脸书

领英

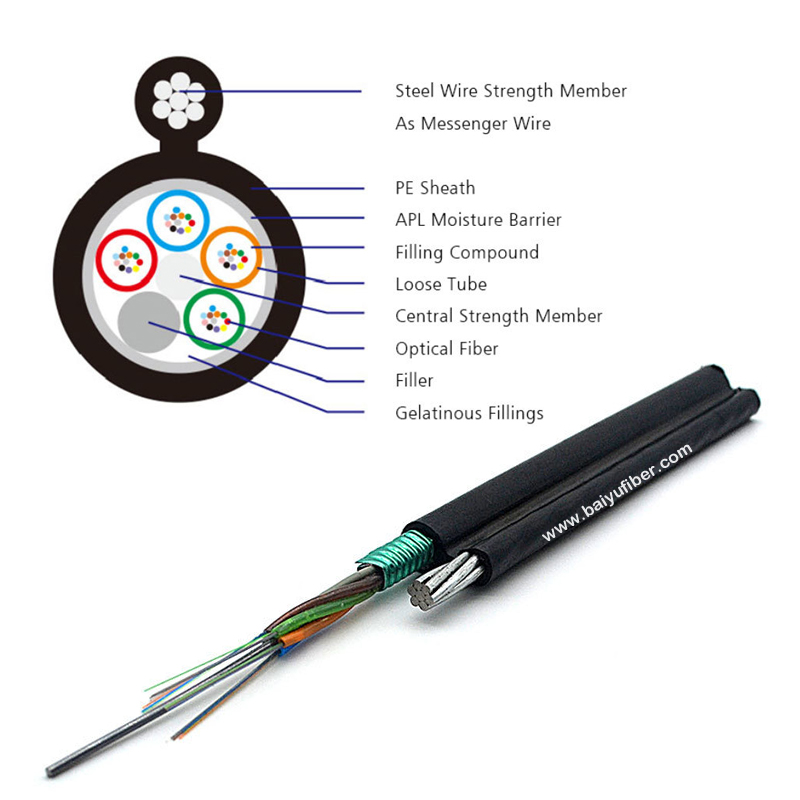

GYTC8S fiber optic cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand to-gether around metallic central strength member into a compact and

Product No. BY-GYTC8S

Types Fiber Optic cable

Secification Up to 144 Cores

Material HDPE

Chat Now

Send Inquiry

OverviewSpecification DataApplicationFile Download

Fiber Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options

Applications:

Easy aerial installation,because of fig8 self supporting design,with simple and easy installation tools & accessories.

Main Features:
1. Cable section is “8”,with 7*1.2mm steel wires;
2. PSP corrugated steel tape;
3. Steel wire strength member;
4. PBT loose tube,each tube max 12 fibers.

Advantages:
1. Self supporting,easy installation,save construction and labor cost;
2. Waterproof tape,gel compound,the fiber section all waterproof;
3. Steel tape armored with good crush resistance performance,also anti-rodent;
4. We can OEM produced double armored double jacket,single armored double jacket GYTC8S as customer requirements.

Storage/Operating Temperature: -40°C to + 70°C

Standard: YD/Y 1155-2001 as well as IEC 60794-1
